JH-VG4-WL

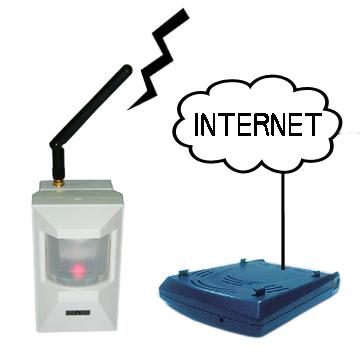

REMOTE VIEW WITH WIRELESS CAMERA

[FEATURE]   [SPECIFICATION]   [APPLICATION SOFTWARE DOWNLOAD]

- Easy install by plug the power adapter and connect to IP Router LAN port.

- Use the Application program to remote view and record.

- Application:  Home nurse. Company, warehouse watch. Anywhere you want to remote view.

SPECIFICATION:

wireless camera: JH-230-1

     -1/3" color CCD image sensor

     - Elements: 510*492

     - H. Resolution: 380TVL

     - 0.1Lux @F2.0

     - S/N ratio: more than 48db

     - Lens: pinhole 3.7mm (4-Glass)

     - Wireless frequency: 2.4GHz for video transmitter use than wifi use

     - Wireless code: 4 sets.

     - Power: DC12V0.5A

     - Size: 130*70*65 mm w/o bracket and ant.

     - Weight: 150g

video gateway with wireless receiver: JH-VG4-1

     - Wireless frequency: 2.4GHz, for video use

     - Wireless code: 4 sets

     - Internet port: RJ45 10 BaseT/ support UPNP, easy install.

     - Internet transmitting speed:

     - Power: DC5V 350mA

     - Size: 180*110*30 mm w/o ANT.

     - Weight: 150g
