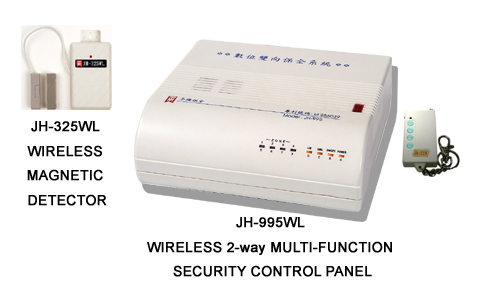

JH-995WLS

WIRELESS 2-WAY MULTI-FUNCTION SECURITY SYSTEM

　

-purpose: home nursing, surveillance, automatic partner, community security etc-

  Feature:

A. 5 emergency telephone number setup.

     It can be the local phone number or mobile phone number

B. Emergency display voice message

    20 seconds (divide to 4 parts).

C. Sensor input.

    8 ZONE, according to the function difference, it have burglar zone, panic zone,

    home-care zone, fire alarm zone.

D. Remote control function.

    5 control terminals and 1 siren control terminal.

SPECIFICATION:

*JH-995WL

INPUT

8 ZONES

DELAY

ARM DELAY: 40 SECONDS (z1-z8)

DISARM DELAY: 40 SECONDS (z1)

OUTPUT

2 SETS CAN BE CONTROL BY TELEPHONE.

SIREN OUTPUT

30 SECONDS, CAN RESTART BY TELEPHONE

TRANSMISSION INTERFACE

BY TELEPHONE.

EMERGENCY CALL SETUP

5 SET

VOICE RECORD

20 SECONDS

ALARM MEMORY FUNCTION

YES

2 WAY INTERCOM FUNCTION

YES

REMOTE ARM/DISARM

YES

POWER

DC14.5V

UPS DESIGN

1.2ah/DC12V BATTERY  (option)

SIZE

220 (L)*190(W)*70(H) mm

　

　

　

　

　

　

　

　

　

　

　

　

　

*JH-325WL

POWER

DC9V -  DRY BATTERY

SIZE

118*60*21 mm

HOUSE CODE

6561 SET- CODE BY DIP SW.

ZONE CODE

4 SET- CODE BY DIP SW

DETECTOR TYPE

MAGNETIC- NC TYPE

*JH-22A

POWER

DC12V – DRY BATTERY

BUTTON

4- DEFINE AS BELOW

1ST: ARM

2ND: DISARM

3RD: NO USE

4TH: WIRELESS PANIC FUNCTION
